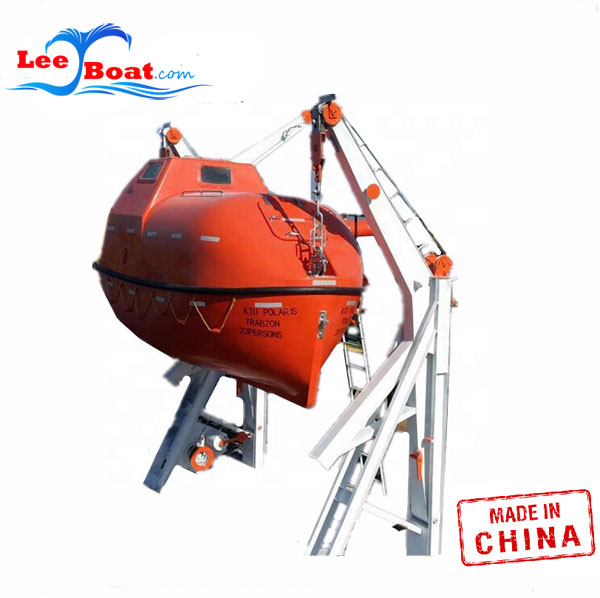

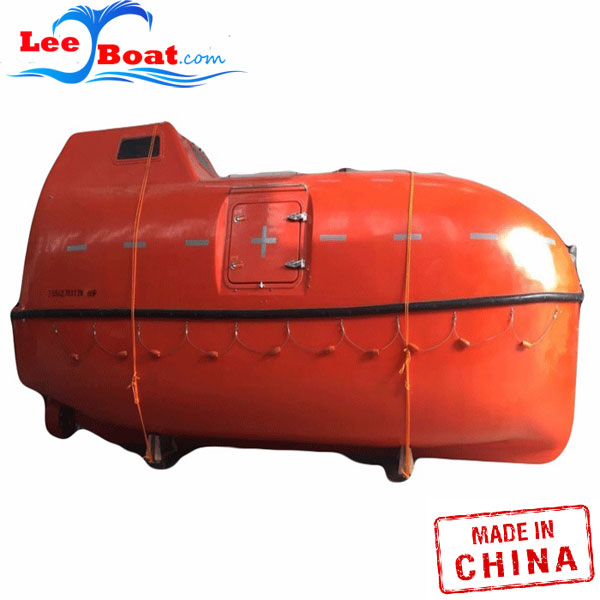

Feature of 16 persons free fall totally enclosed life boat / lifeboat
1.Comply
with the requirements and rules of SOLAS and amendment 1996, LSA Code,
MSC.218(82), MSC.272(85)& MSC.81(70), MSC.226(82), MSC.274(85).
2.Boat body material: fire-pretended type FRP.
3.Fitted with release mechanism and free falls in to the water;
4.It can self-righting by itself when capsized;
5.Equipments is equipped;
6.The surface for walking is the antiskid;
7.Equip a manual pump remove the ponding in the boat;
8.Running time of rescue boat when full-loaded & full-speed is more than 24 hours.
9.Speed (full load): >6 knots
10.All seats are according to requirement of cosmetology, four point safe belt and cushion were fitted on seat.
11.Door
was fitted at lifeboat stern, Natural ventilation is achieved via an
automatic valve located on the front of superstructure. The valve will
be above water in all heeling conditions ( 0 – 180 degrees ). The valve
also prevents the cabin from becoming dangerously under-pressured while
the engine is running.
12.A water spray system is installed for fire
protection. The spray system consists of an engine driven pump, which
takes seawater from the lowest possible location under the boat ensuring
that no flammable liquid is drawn into the system. The spray system
provides water over the entire surface of the craft ( tanker version
only)
13.The compressed air system installed has a sufficient
capacity to provide air from the maximum number of personnel and engine
combustion for a minimum of 10 minutes. Toxic fumes or gas prevention
have been made to recharge the air system from the ship’s compressed air
system (tanker version only)
Description
¾ Comply with the requirements and rules of SOLAS MSC.218(82), MSC.272(85)and amendment 1996, MSC.81(70) ,,MSC.226(82) & MSC.274(85).
¾ It can self-rightening by itself.
¾ Release hook device is the with the load release. And across approval by Classification Society. The release hook has the insurance device. It must lock the insurance after the hook re-position. And at the same time the release hook can be came away.
¾ Bases the SOLAS require to equip the equipment. The petty equipment will be fitted in the waterproof equipment box. The oars will be attached in the rescue boat. And the compass and searchlight etc. will be fixture on the brace.
¾ All seats are according to requirement of SOLAS, four point safe belt and cushion were fitted on seat,
¾ It is installed the buoyant lifeline at the two side of rescue boat.;
¾ The tread surface is the anti-skid;
¾ Equip a manual pump. It used to work off the seeper in the boat;
¾ When the boat is full loaded the full-speed running time is not less than 24 hours
¾ It is at least 2 knots when towing a life raft loaded with its full complement of person and equipment or its equivalent.
¾ According to criterion, reflect light strips were exhibited on lifeboat’s surface;
¾ Glass of windows is toughened glass;
¾ Fire extinguisher was fitted in lifeboat;
¾ Door
was fitted at lifeboat stern, Natural ventilation is achieved via an
automatic valve located on the front of superstructure. The valve will
be above water in all heeling conditions (0-180 degrees).The valve also
prevents the cabin from becoming dangerously under-pressured while the
engine is running.
Electrical System
¾ Provide 2 set 90AH type accumulator for illume and start the engine. It is Maintenance free type and can charge.
¾ The charge transformer is provided by davit. It is installed in the electrical control box for davit.
Provide the charge cable. The length is not less than 15m. The plug and socket is waterproof
Produce Quality
¾ The quality for life boat across the ISO9001:2008 require to regulation.
¾ The quality for life boat coincidence drawings and technical document require.
Hook
Electrical system
¾ Provide 2 set 90AH type accumulator for illume and start the engine. It is Maintenance free type and can charge.
¾ The charge transformer is provided by davit. It is installed in the electrical control box for davit.
¾ Provide the charge cable. The length is not less than 15m. The plug and socket is waterproof;
Produce quality
¾ The quality for life boat across the ISO9001:2008 require to regulation.
¾ The quality for life boat coincidence drawings and technical document require.
Guarantee period
12 months after the vessel delivery.
